Introduction to Titanium Sputtering Target Round Discs

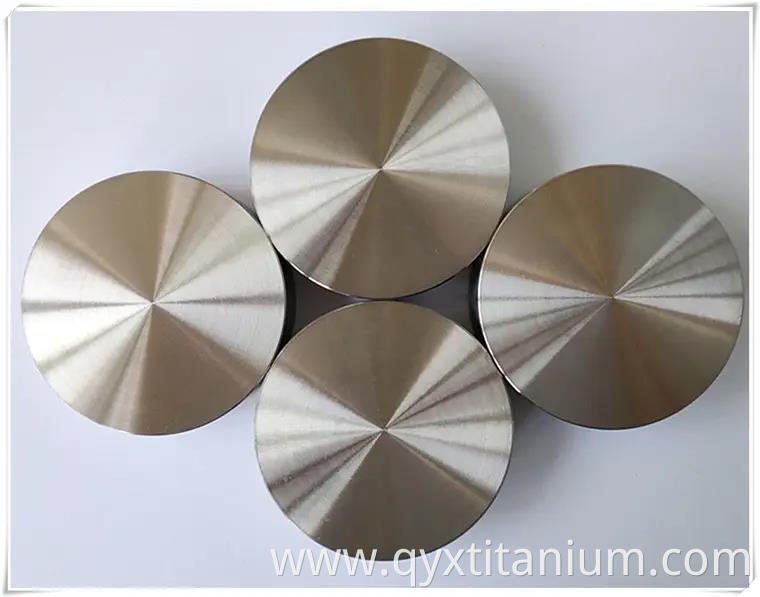

Titanium sputtering target round discs electroplating target is disc‑shaped Titanium Target for magnetron sputtering PVD electroplating. Titanium (atomic number 22, density 4.506 g/cm³, melting point 1660°C) is silver‑white transition metal with high tensile strength (230‑460 MPa), good corrosion resistance and biocompatibility. QYX provides purity grades ranging from 99.5% up to ultra‑high‑purity 99.995%. Besides round discs, we manufacture planar, cylindrical, arc and special‑shaped targets, as well as multiple titanium‑alloy targets including TiAl, TiSi, TiTa and TiZr series. Target material is polycrystalline; fine and evenly distributed grains deliver faster sputtering speed and more uniform film thickness for TiN decorative, tool hard‑coating and semiconductor barrier‑layer applications.

• Purity options: 99.5%, 99.7%, 99.8%, 99.9%, 99.95%, 99.99%, 99.995%
• Core physical parameters: Thermal conductivity 21.90 W·m⁻¹·K⁻¹, resistivity 54 μΩ·cm
• Processing technology: Vacuum melting + thermal deformation for fine‑grain, low‑inclusion microstructure
• Main applications: Hardware decoration, cutting‑tool coating, semiconductor, Medical Titanium Alloy surface treatment

Understanding Electroplating Basics (PVD Sputtering Type)

How magnetron‑sputtering electroplating works with Titanium Round Discs

Unlike traditional wet electroplating, PVD magnetron‑sputtering electroplating completes deposition inside high‑vacuum chamber. Inert argon gas is injected; high‑voltage power generates plasma; argon ions bombard surface of titanium sputtering target round discs electroplating target. Titanium atoms are ejected and travel to substrate surface, forming compact titanium or TiN thin‑film coatings.

• DC sputtering applies for pure‑titanium conductive round‑disc targets
• Reactive sputtering mixes nitrogen/oxygen gas to produce TiN golden decorative coating or TiO₂ functional film
• Key influencing factors: Target purity, grain uniformity, vacuum degree, sputtering power, gas flow, target‑substrate distance

Importance of Titanium in Electroplating

Titanium stands out among sputtering source materials for electroplating surface finishing. When using qualified Titanium Target such as QYX‑produced titanium sputtering target round discs electroplating target, deposited films gain multiple critical merits:

1. Excellent corrosion‑resistant coating layer against moisture, chloride and seawater‑like environments
2. High film‑substrate adhesion, less peeling risk for hardware, tool and medical‑component substrates
3. Biocompatible property, safe for PVD coating on surgical‑implant related parts
4. Stable sputtering performance, suitable for continuous mass electroplating production cycles
5. Supports decorative bright metallic or golden‑yellow TiN finish for consumer‑goods industry

Preparing the Sputtering Target for Use

Step‑by‑step target receiving, cleaning and mounting preparation

• Inspect incoming goods: Check surface condition, dimension report and COA purity certificate of titanium sputtering target round discs electroplating target. Reject products with scratches, oxidation spots or cracks before putting into production.
• Cleaning procedure: Handle only with lint‑free anti‑static gloves. Wipe disc surface sequentially with acetone and isopropyl alcohol lint‑free cloth; dry completely in clean oven; avoid bare‑finger contact which causes surface contamination and arcing risk during sputtering.
• Storage before installation: Keep unused Titanium Target in original vacuum‑sealed bag within dry low‑humidity storage area, prevent pre‑use oxidation.
• Mounting preparation: Inspect backing‑plate bonding layer cooling channel; confirm no residual dirt; ensure flat full contact between round‑disc target and cooling fixture for heat dissipation.

Setting Up the Electroplating Equipment

Correct chamber setup determines coating consistency after installing titanium round‑disc target:

• Install cleaned titanium sputtering target round discs electroplating target firmly onto magnetron cathode fixture; fasten torque follow equipment OEM specification, avoid over‑tightening induced target cracking.
• Load cleaned substrates onto rotating substrate holder; adjust target‑to‑substrate distance (common range:5‑15 cm for titanium deposition).
• Seal vacuum chamber; start vacuum pumping; achieve base vacuum better than 5×10⁻⁶ Torr before introducing working argon gas.
• Check cooling‑water circulation of target assembly; confirm water flow and temperature within operating limits to prevent over‑heating of Titanium Target in long‑run production.
• Verify gas pipeline tightness for argon and reactive‑gas (nitrogen for TiN coating) supply.

Optimizing Sputtering Parameters for Best Results

Reference operating parameters for titanium round‑disc target electroplating

Parameters below serve as starting reference; fine‑tune according to your actual machine model, target diameter and required film performance.

• Power mode: DC Magnetron Sputtering for pure‑Ti target; power range:150‑300 W for medium‑size round‑disc target, ramp‑up power slowly to avoid thermal shock damage.
• Working gas: High‑purity Argon; typical flow rate:10‑30 sccm; working pressure:2‑10 mTorr.
• Reactive‑gas (for TiN golden coating): Introduce controlled nitrogen flow mixed with argon.
• Substrate: Can run at room temperature up to 200 °C; enable substrate rotation to improve coating thickness uniformity.
• Pre‑sputter cleaning: Run pre‑sputter for 5‑15 minutes with shutter closed to remove slight surface oxide layer of titanium sputtering target round discs electroplating target before formal deposition.

Safety Precautions and Handling Guidelines

PVD electroplating using Titanium Target involves high‑voltage power supply, vacuum equipment and high‑purity gas cylinders; strictly follow these safety rules:

• Only trained operators perform chamber opening and target replacement; cut off high‑voltage power supply before opening chamber access door.
• Wear anti‑static gloves, safety glasses during target‑disc handling; prevent sharp‑edge scratch injury and surface contamination.
• Store argon/nitrogen gas cylinders securely with chain fixation inside ventilated gas cabinet.
• Monitor target temperature continuously in production; stop process immediately if abnormal over‑heating or frequent arcing occurs.
• Do not touch hot target disc right after finishing production cycle; wait sufficient natural cooling before disassembly.

Troubleshooting Common Issues in Electroplating

Maintenance of Sputtering Targets and Equipment

Target disc daily maintenance & equipment routine care

• After production run finishes: Cool down completely before taking out titanium sputtering target round discs electroplating target. If target still has usable thickness, clean surface, put back into vacuum‑sealed storage bag for next‑time use.
• Observe target erosion track regularly; replace round‑disc Titanium Target when residual thickness reaches manufacturer‑suggested minimum limit, avoid backing‑plate exposure risk.
• Clean vacuum‑chamber inner wall and shielding‑plates periodically to remove accumulated titanium sputtering residues.
• Calibrate sputtering power supply, mass‑flow gas controllers and vacuum gauges on scheduled maintenance cycle to guarantee stable parameter output.
• Check cooling‑water quality, filter and pipeline to prevent scale deposit reducing heat‑dissipation performance of target assembly.

Conclusion: Benefits of Using Titanium Sputtering Targets

Correct preparation, equipment setup, parameter tuning, safety operation and regular maintenance allow titanium sputtering target round discs electroplating target to deliver stable high‑quality PVD electroplating results. Premium‑grade Titanium Target brings uniform thin‑film, high adhesion, corrosion‑resistant and biocompatible coating performance for decoration, tooling, medical and semiconductor sectors. As ISO9001, TUV, BV certified manufacturer in Baoji Titanium Valley, QYX METAL offers pure‑titanium and alloy round‑disc sputtering targets, alongside Titanium Disc & Titanium Target, Titanium Forgings, Aircraft Titanium Material and Titanium Auto Part product portfolio, supporting sample testing, small‑batch trial and large‑volume OEM & ODM customization for global electroplating customers. Contact our overseas sales team for technical datasheets and quotation.

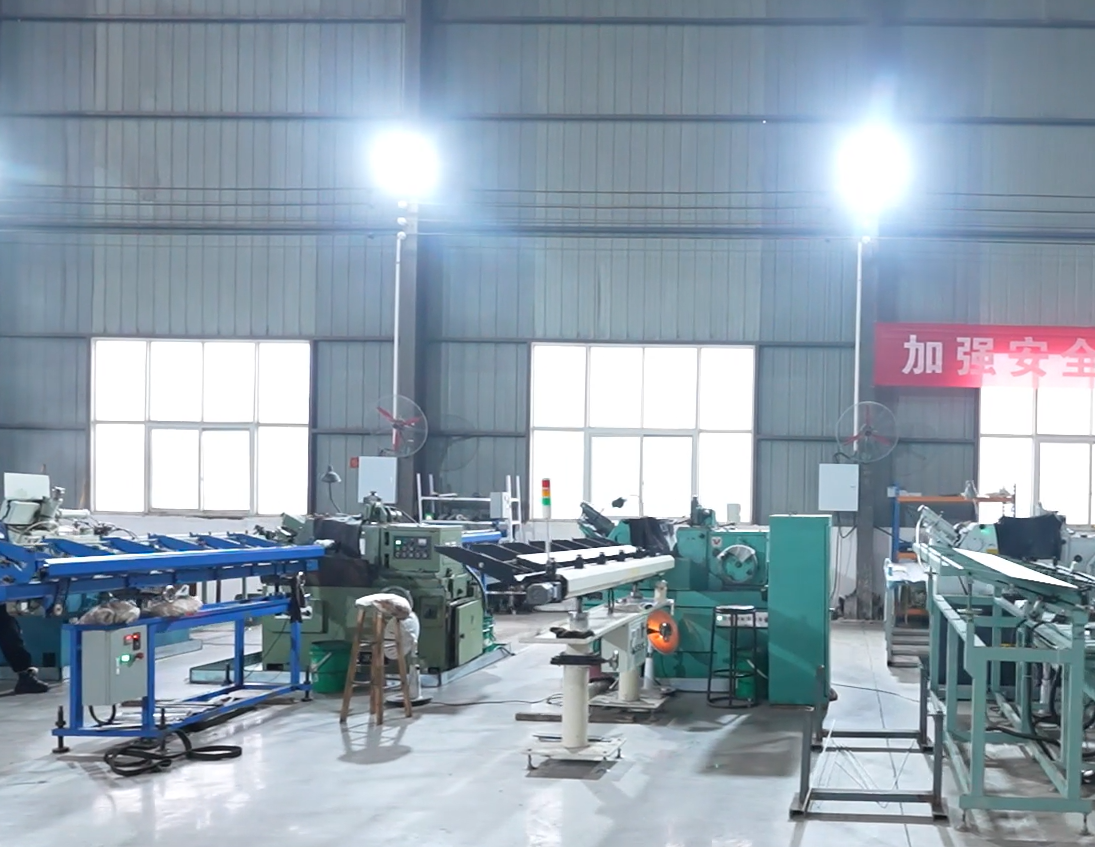

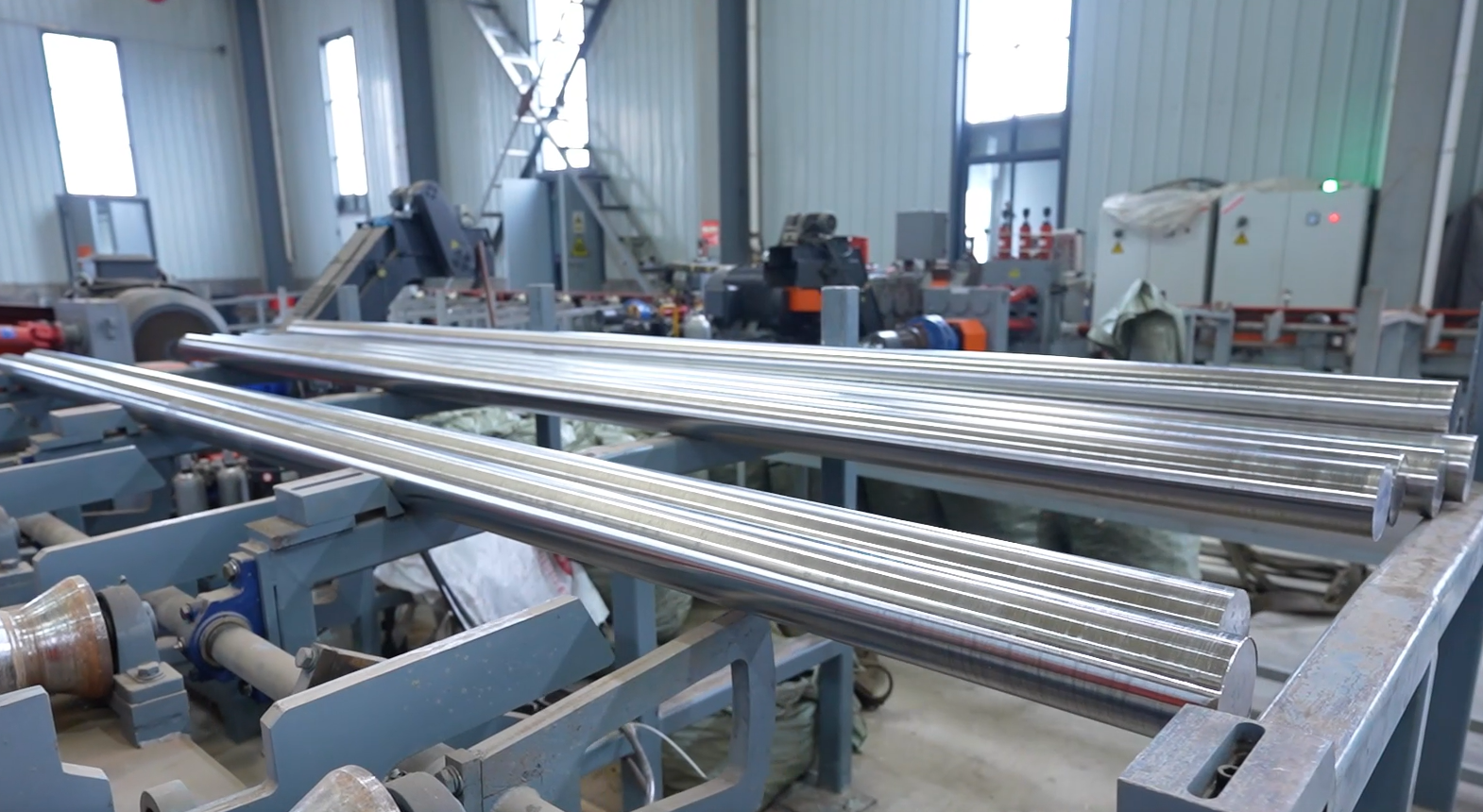

QYX Factory Scale & Facilities

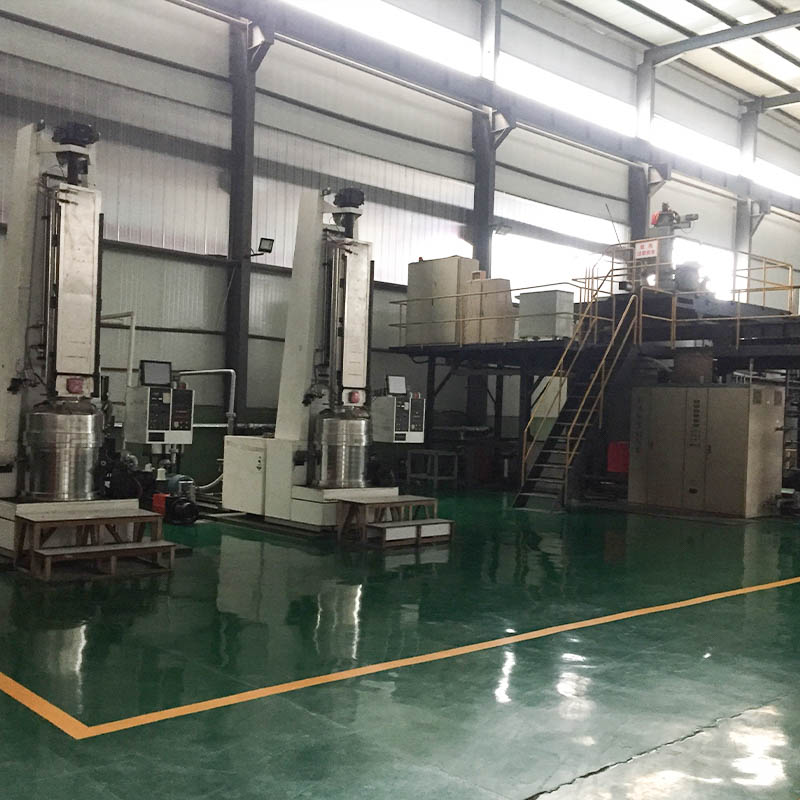

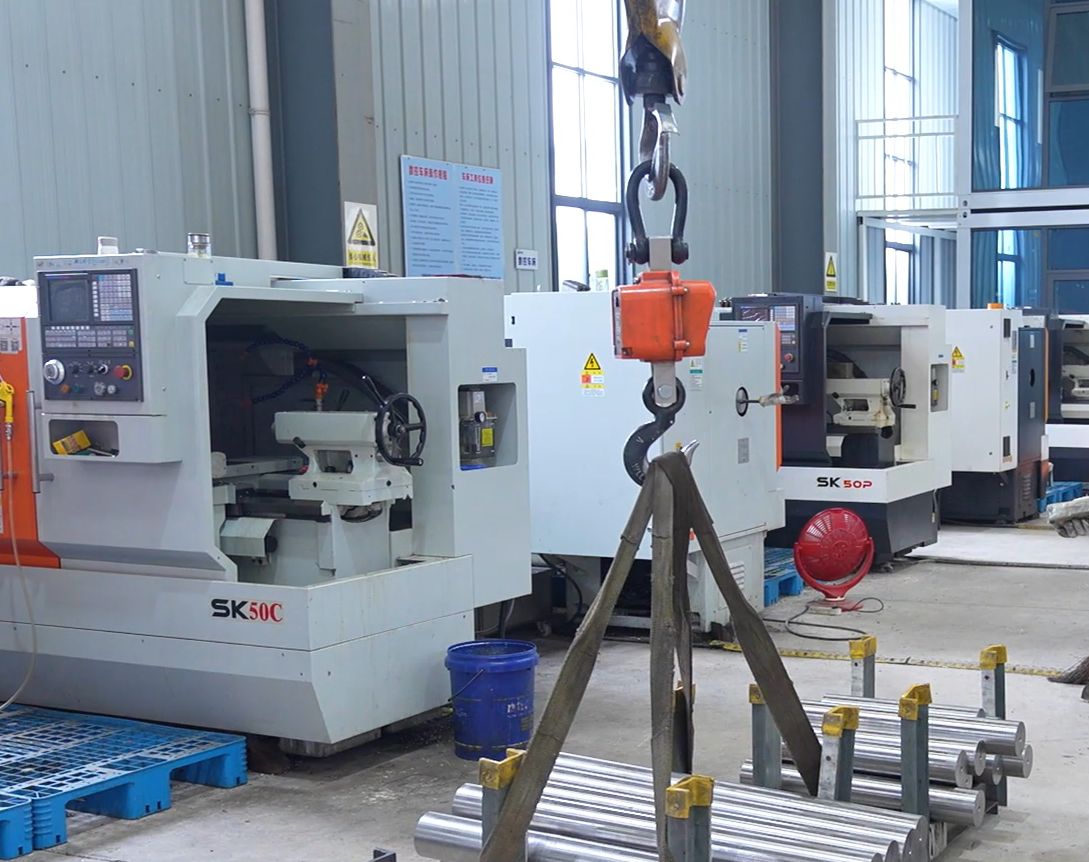

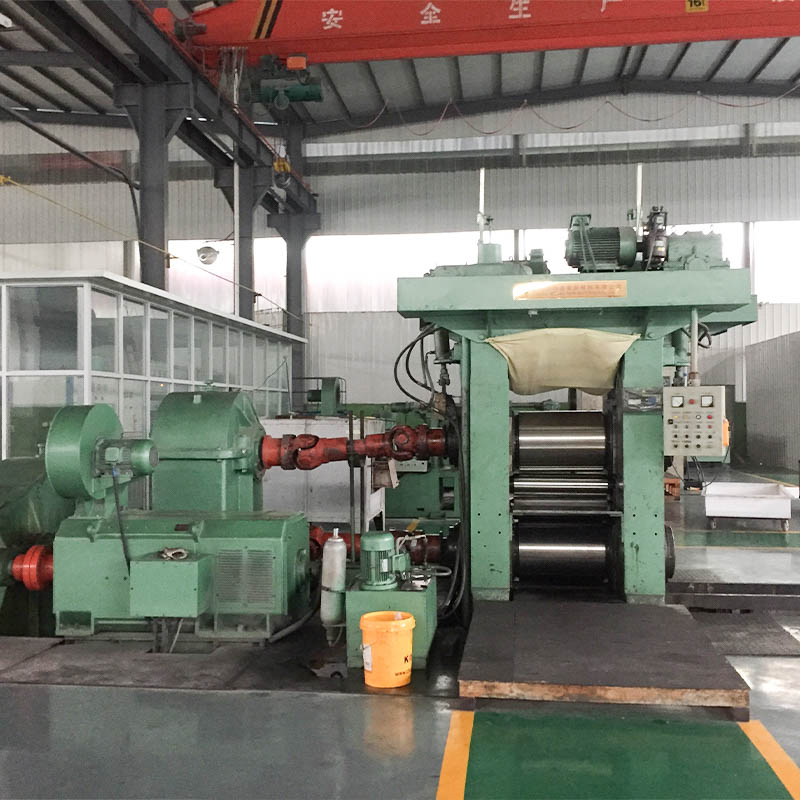

QYX METAL owns standardized modern manufacturing workshops equipped with vacuum melting furnaces, hot‑deformation forging presses, multi‑axis CNC precision‑machining centers and full‑set physical‑chemical inspection laboratory. Our complete workflow covers raw‑material smelting, thermal forging deformation, rolling, precision cutting, surface polishing, strict multi‑stage quality inspection and export‑grade vacuum packaging. Production capacity supports custom‑size manufacturing of planar, round‑disc, cylindrical, arc‑shaped and special‑shaped Titanium Target including titanium sputtering target round discs electroplating target. We satisfy both small‑batch R&D sample orders and large‑scale industrial bulk procurement demands from overseas electroplating enterprises.
