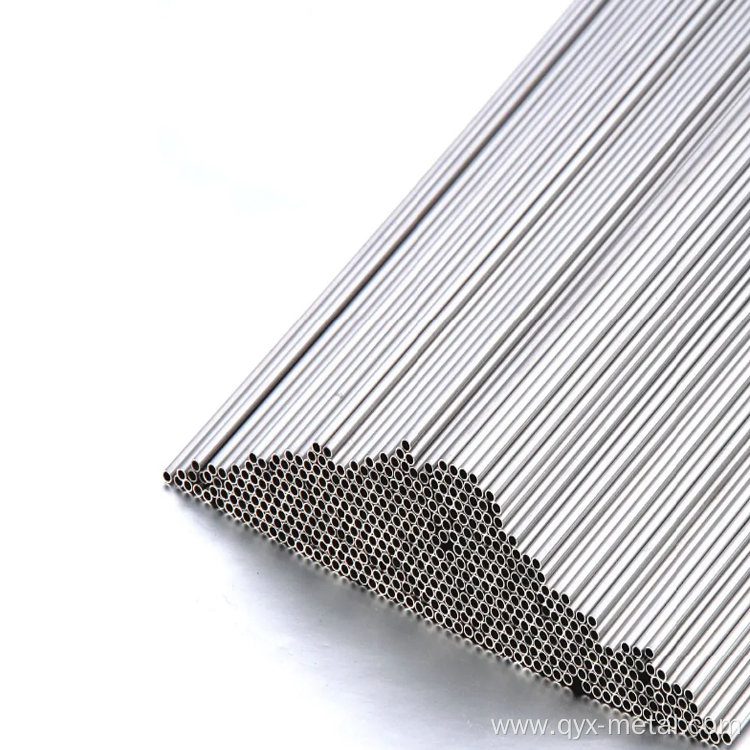

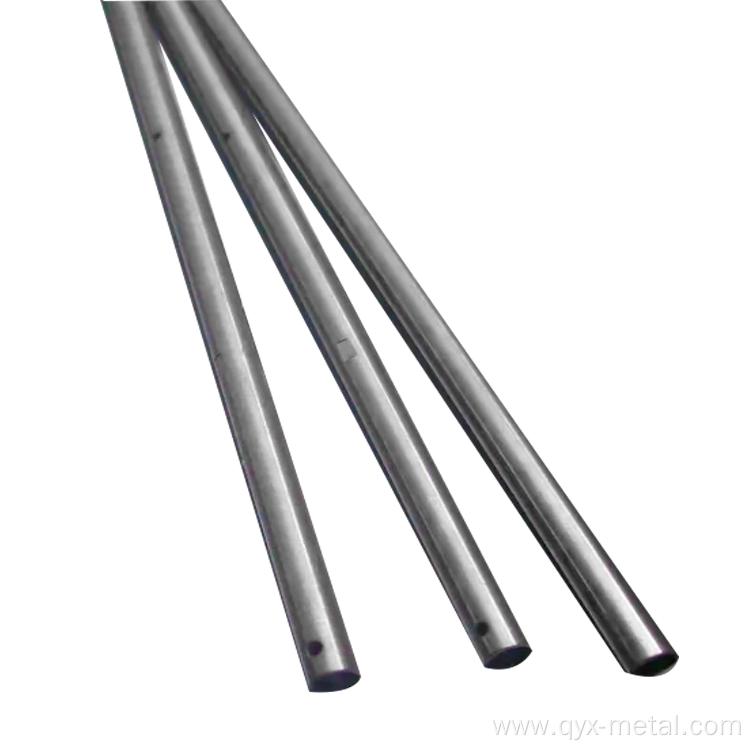

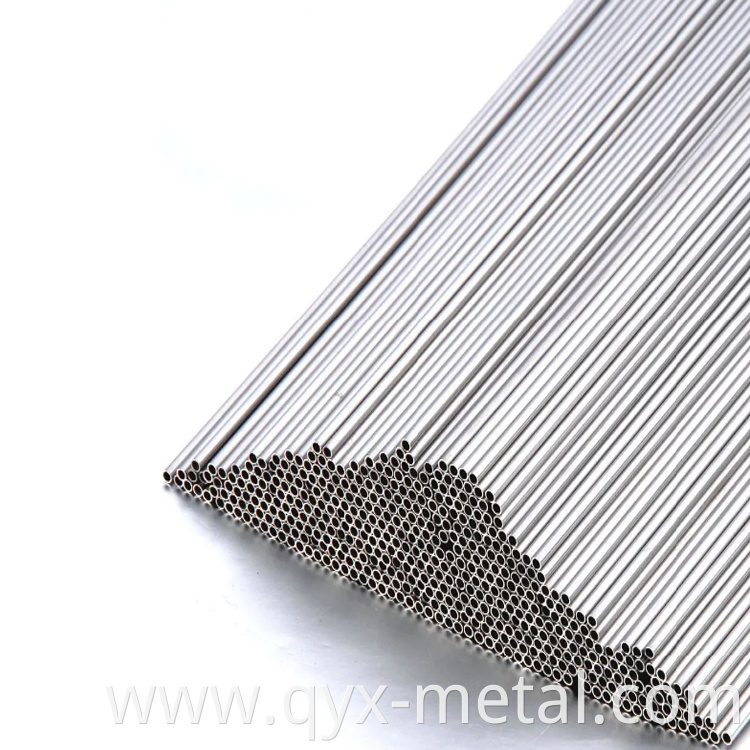

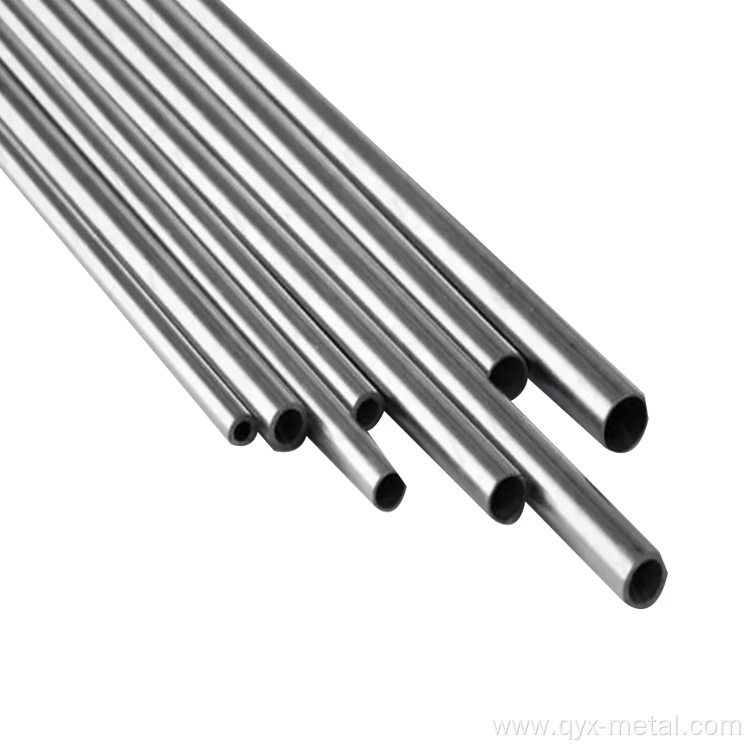

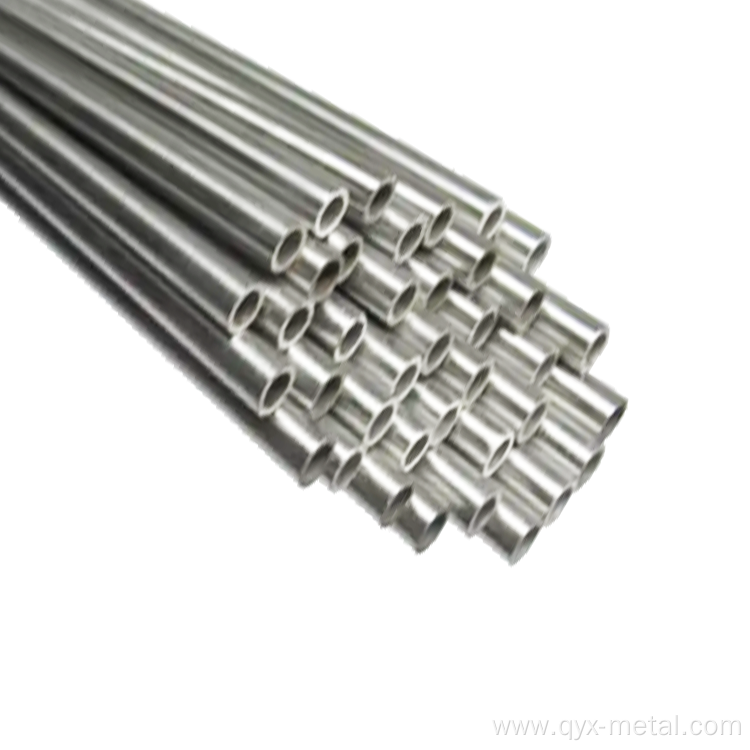

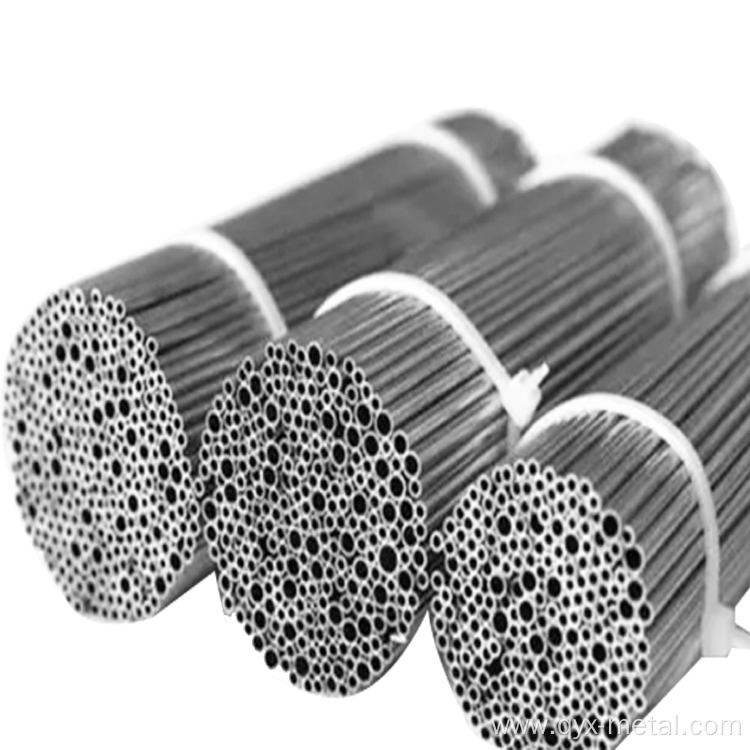

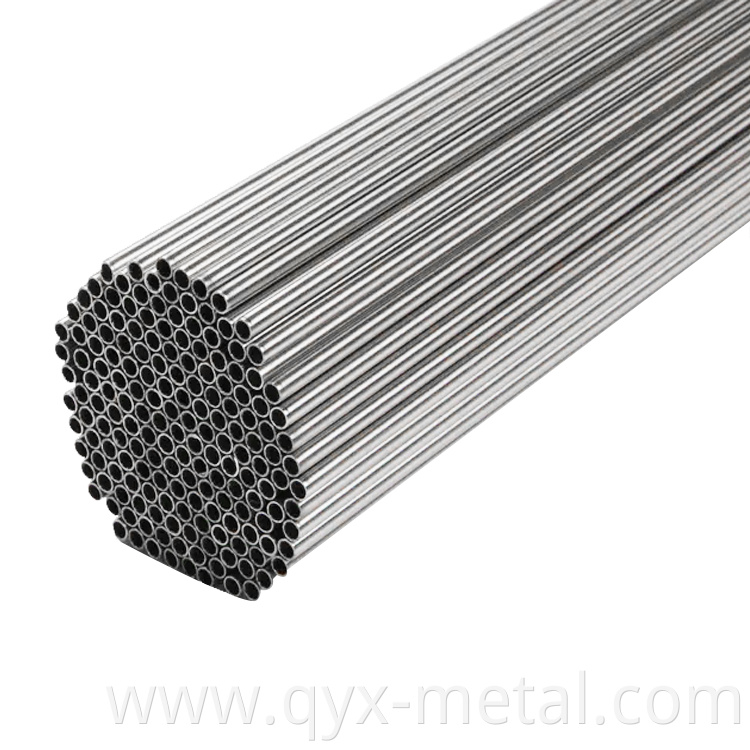

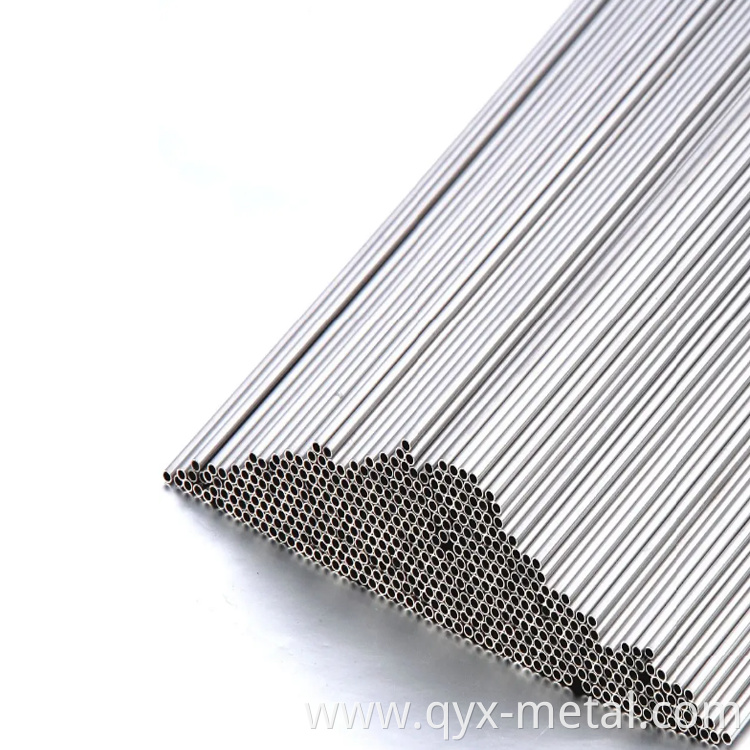

titanium capillary tube medical grade capillary tubing

$10 - 20 /kilogram

Payment Type:

L/C,Western Union,T/T,MoneyGram

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 kilogram

Transportation:

Ocean,Air,Land,Express

Port:

Shanghai,Tianjin,Shenzhen

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Place Of Origin: China

Brand Name: qiyuexin

Model Number: qyx003

Outer Diameter: 0.5mm~15mm

Technique: Seamless

Grade: titanium GR1

Inside Diameter: 0.4MM~5MM

Processing Service: Bending

Product Name: Titanium Capillary Tube

Type: Round Titanium Tube

Keywords: capillary tube titanium

Surface: Polished

OD: 0.5mm~15mm

Thickness: 0.015MM~0.2MM

Certificate: ISO9001:2008

Feature: Fine Corrosion Resistance

Shape: Round Shape

Material: Titanium

Length: 500~900mm

Standard: ASTM 337 338

Application: Industrial

Wall Thickness: 0.015MM~0.2MM

Brand: qiyuexin

Supply Ability & Additional Information

Packaging: wooden case

Transportation: Ocean,Air,Land,Express

Supply Ability: 10000 Kilogram/Kilograms per Month

Port: Shanghai,Tianjin,Shenzhen

Payment Type: L/C,Western Union,T/T,MoneyGram

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: kilogram

Package Type:: wooden case

titanium capillary tube medical grade capillary tubing ISO 9001 and EN10204-3.1 mill certificates ensure quality and material traceabilit。Better price

1.Chemical requirements of titanium capillary tube medical grade capillary tubing

	Tensile strength		Yeild strength min max		Elongation
	MPa	kis	ksi Mpa	ksi Mpa	%
Gr 1	240	35	20(138)	45(310)	24
Gr 2	345	50	40(275)	65(450)	20
Gr 3	450	65	55(380)	80(550)	18
Gr 7	345	50	40(275)	65(450)	20
Gr 9	620	90	70(483)	...	15
Gr11	240	35	20(138)	45(310)	24
Gr12	483	70	50(345)	...	18
Gr13	275	40	25(170)	...	24
Gr14	410	60	40(275)	...	20

Grade2 thin wall titanium capillary tube for medical Using

2.Dimension and Tolerance of titanium tube

Outside diameter, in.(mm)	Diameter tolerance, in.(mm)	Permissible variations , wall thinckness, t, % in.(mm)
<1 (25.4)	±0.004( ± 0.012)	±10
1-1½(25.4-38.1)	±0.005( ±0.127 )	±10
1½-2(38.1-50.8)	±0.006( ± 0.152)	±10
2-2½(50.8-63.5)	±0.007( ± 0.178)	±10
2½-3½(63.5-88.9)	±0.010( ± 0.254)	±10

item	titanium capillary tube
Place of Origin	China
Brand Name	qiyuexin
Model Number	qyx003
Material	Titanium
Outer Diameter	0.5mm~15mm
Length	500~900mm
Standard	ASTM 337 338
Application	Industrial
Technique	Seamless
Grade	titanium GR1
Wall Thickness	0.015MM~0.2MM
Inside Diameter	0.4MM~5MM
Processing Service	Bending, Welding, Cutting
Product Name	Titanium Capillary Tube
Type	Round Titanium Tube
Keywords	capillary tube titanium
Surface	Polished
OD	0.5mm~15mm
Thickness	0.015MM~0.2MM
Certificate	ISO9001:2008
Feature	Fine Corrosion Resistance
Shape	Round Shape
Brand	qiyuexin

Baoji qiyuexin metal materials Co., Ltd. is located in the east zone of Shaanxi Baoji high tech Industrial Development Zone,

whichis known as "China Titanium Valley". It was established in 2018 with a registered capital of 3 million yuan. It is an

enterpriselong engaged in the processing and manufacturing of titanium and other rare metals. It has profound inside informationand richexperience in the production of rare metals. The company has passed the ISO9001 quality management system certification.Over theyears, with strong technical strength, high-quality and mature products and perfect quality management system, the companyhasachieved rapid development. So far, its products are exported to home and abroad. Baoji qiyuexin metal materials Co., Ltd.focuseson the production of Titanium Pipe Fittings, titanium, nickel, Zirconium, Molybdenum, flanges, pipe fittings andothernon-standard products. Its products include bar, plate, pipe, wire, foil, special-shaped drawing processing parts of variousmetalmaterials, various metal composite diamond bits, and pipe targets, round targets and plate targets used in vacuum sputtering coating industry; And can provide customers with national standard (GB / T) and American Standard (ASTM) and otherproductiontechnical standards of various metals and their alloy materials.
