AWS A5.16 ERTi23 Titanium Welding Wire

$30 - 50 /Kilogram

Payment Type:

L/C,Western Union,D/P,D/A,T/T,MoneyGram

Incoterm:

FOB,CIF,EXW,DDP,Express Delivery

Min. Order:

1 Kilogram

Transportation:

Ocean,Land,Air,Express

Port:

Shanghai, Tianjin, Shenzhen

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: qyx005

Processing Service: Bending, Welding, Decoiling, Cutting, Punching, Bending, Welding

Place Of Origin: China

Production Process: Cold Rolled

Material: Gr1, GR1 GR2 GR5 GR12

MOQ: 1kg

Size: 0.1-3.0mm

Grade: titanium

Strength: 894MPa

Standard: AWS A5.16

Application: welding,hanging,glass

Surface: Polished

Keywords: Titaniuml Wire

Supply Ability & Additional Information

Packaging: WOODEN CASE

Transportation: Ocean,Land,Air,Express

Supply Ability: 10000 Ton/Tons per Month

Port: Shanghai, Tianjin, Shenzhen

Payment Type: L/C,Western Union,D/P,D/A,T/T,MoneyGram

Incoterm: FOB,CIF,EXW,DDP,Express Delivery

Packaging & Delivery

Selling Units:: Kilogram

Package Type:: WOODEN CASE

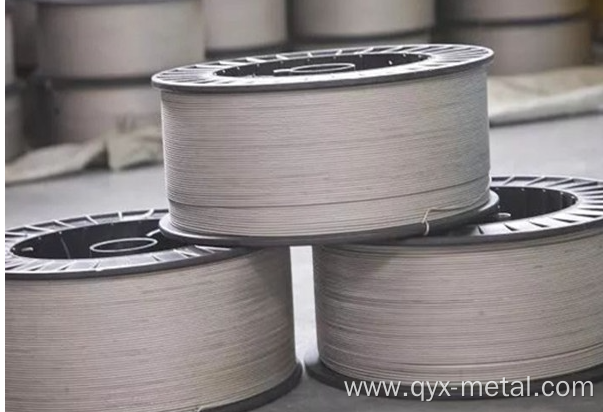

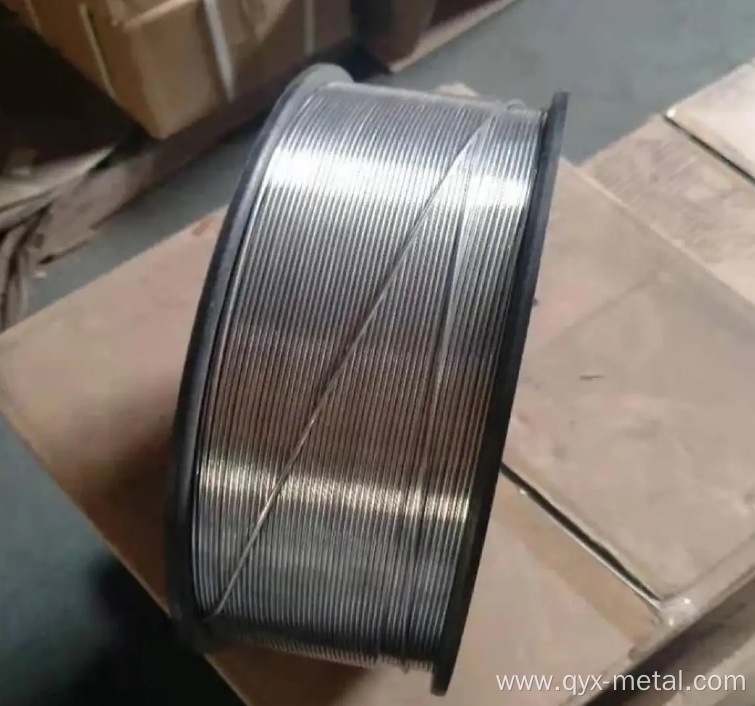

AWS A5.16 ERTi23 Titanium Welding Wire

AWS A5.16 ERTi23 Titanium Welding Wire is a type of welding wire used for welding titanium and titanium alloys. It is a specification established by the American Welding Society (AWS) that outlines the requirements for the chemical composition, physical properties, and testing methods for this particular type of welding wire. ERTi23 is a popular choice for welding titanium because it offers excellent corrosion resistance and high strength, making it suitable for use in a wide range of industries, including aerospace, medical, and marine. The AWS A5.16 specification ensures that ERTi23 welding wire meets the necessary quality standards for safe and reliable welding of Titanium Materials.

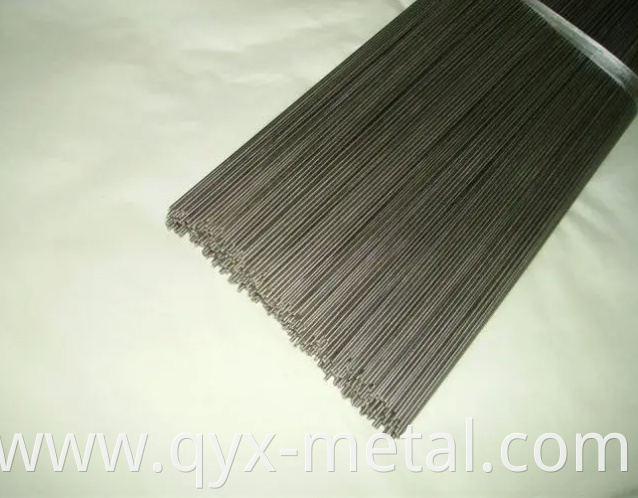

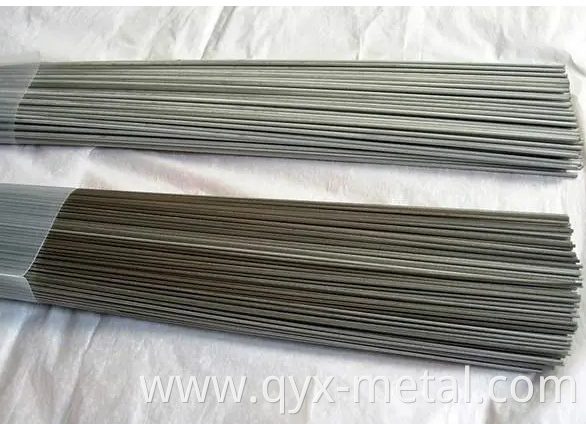

Titanium Wire

Description:

We use semi-finished Titanium Rod to make Titanium Wire. When the titanium rod passes through the hole of the die, it will deform at high temperature due to tensile action. The section decreases and the length increases. It is helpful to eliminate the internal stress and improve the plasticity of the titanium wire under the condition of heating. The precision and surface finish of titanium wire are effectively improved, and the better comprehensive performance can be achieved.

Application:

The titanium wire is usually used for welding, frames, surgical implants, decoration, electroplating hanging fixture.

Used in the production of spherical Titanium Powder.

Specification

Grade

Status

Diameter(mm)

Gr1,Gr2,Gr4,Gr5,Gr7,Gr9,

Gr11, Gr12,Gr16,Gr23

Hot Rolled(R)

Cold Rolled(Y) Annealed(M)

Solution treatment(ST)

0.1~7.0

Tolerance (mm)

Diameter	Thickness tolerance
0.1~0.2	±0.025
0.2~0.5	±0.04
0.56~1.0	±0.06
1.0~2.0	±0.08
2.0~4.0	±0.10
4.0~7.0	±0.14

Testing:

Chemical composition test

Physical properties test

Appearance defects inspection

Metallographic examination

Packaging:

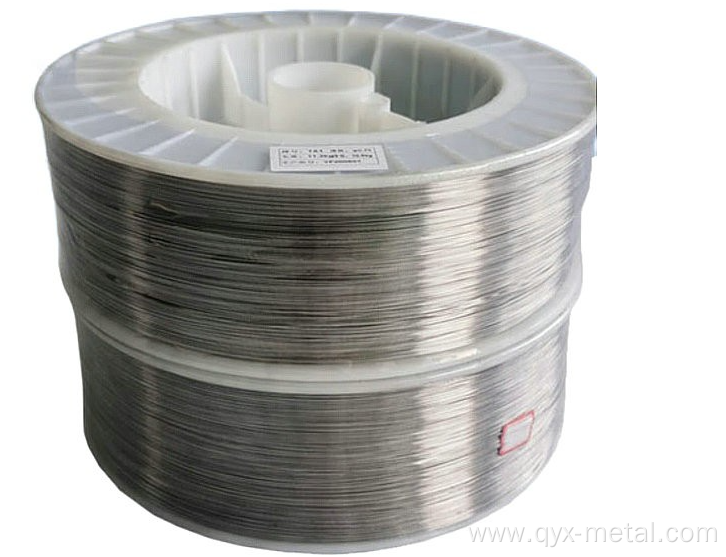

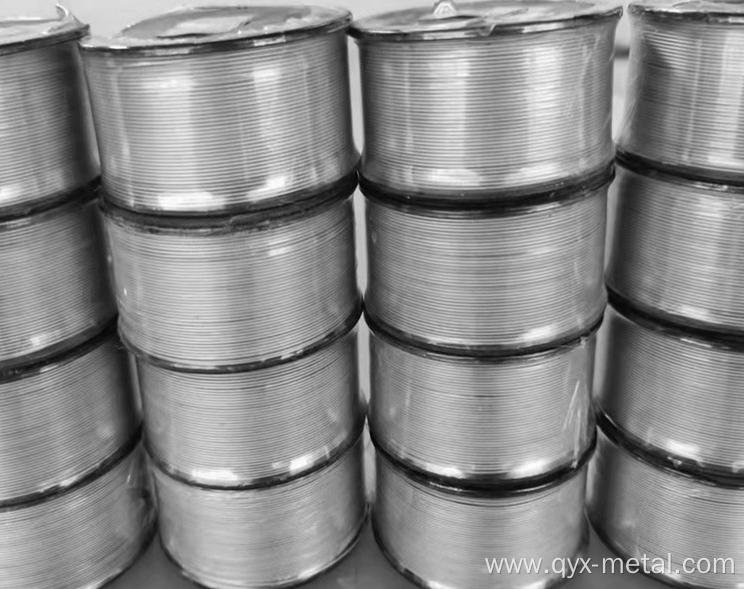

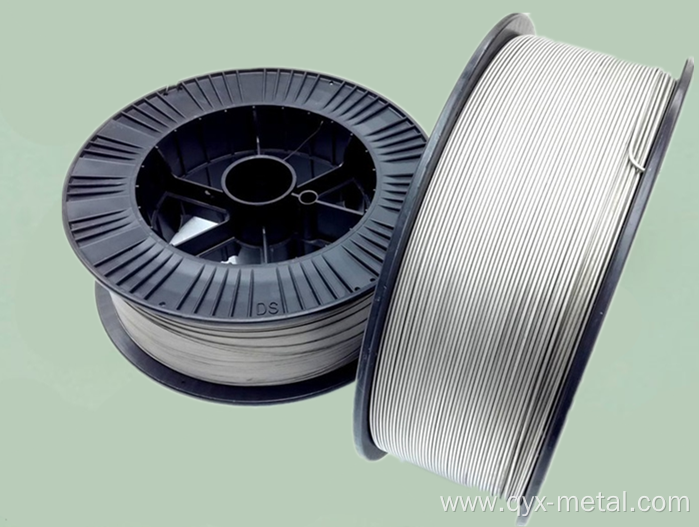

Coil wire: After the wind and parcel with pearl cotton(expandable polyethylene), then packed in wooden cases.

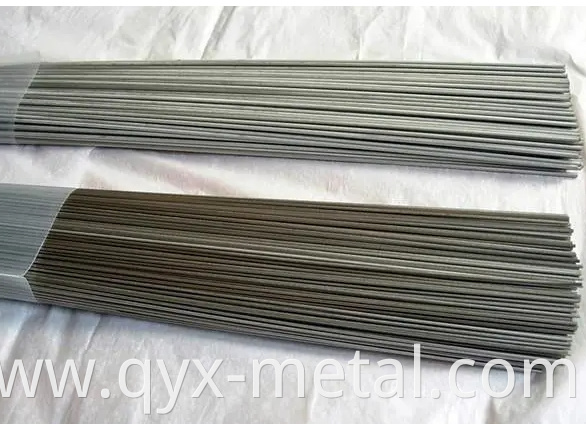

Straight wire: Pack the titanium wire in plastic bags and put in plastic straight barrel, then packed in wooden cases.
