Deep sea oil and gas engineering: guardians of pressure and corrosion resistance
In the field of deep-sea oil and gas engineering, titanium rings have demonstrated strong compressive and corrosion resistance, becoming a key component to ensure the safety and efficiency of underwater oil and gas extraction.
Subsea pipeline connection system
In the subsea pipeline connection system, TC4 titanium rings serve as flange seals and play a crucial sealing role. In extreme environments with a water depth of 1000 meters, it has to withstand pressures of up to 10 MPa to ensure that the pipeline connections do not leak. In the ultra deep scenario of tens of thousands of meters, the

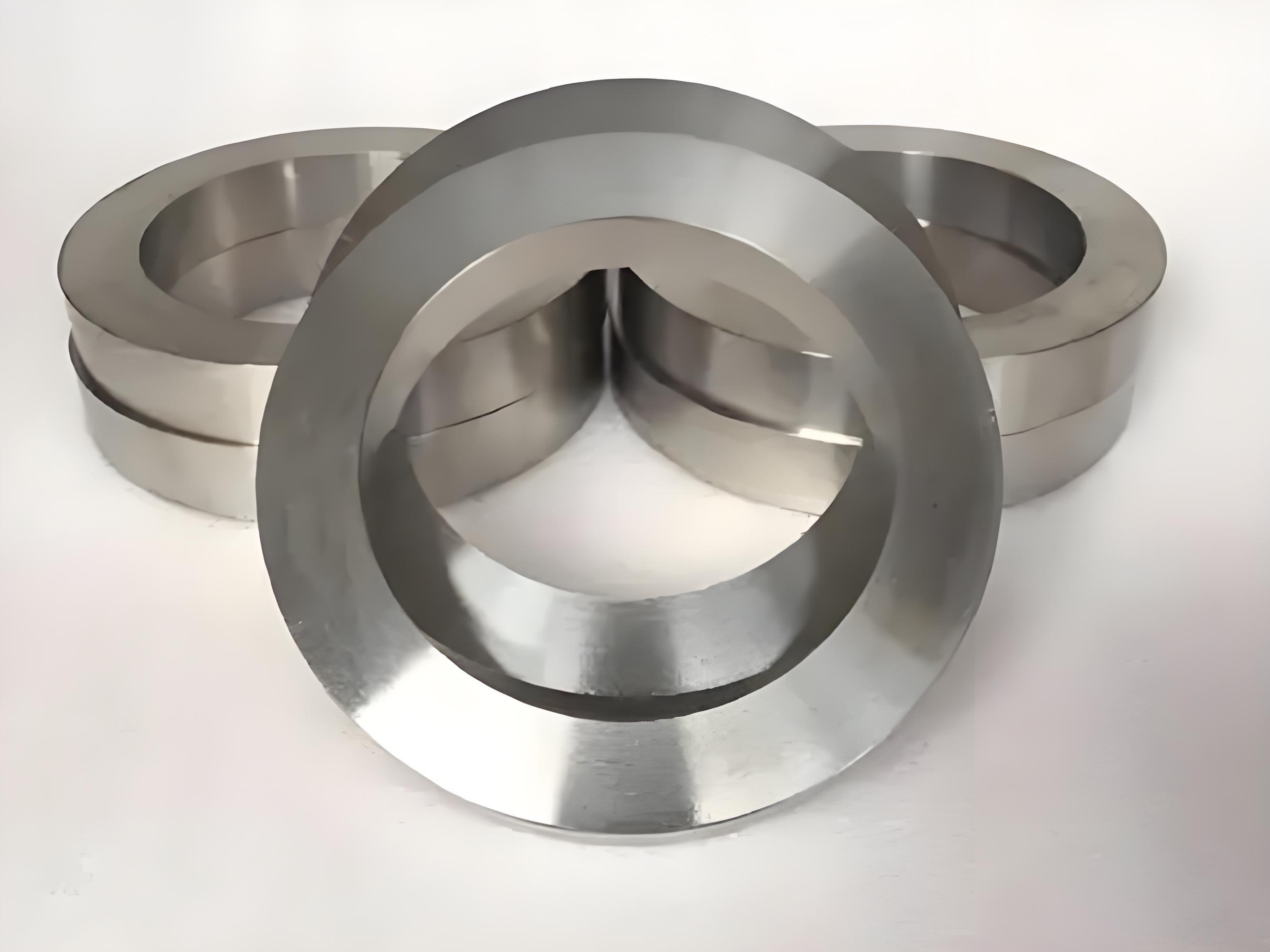

Titanium Ring made of B-type
titanium alloy can increase its compressive strength by more than 100MPa, providing a more reliable safety guarantee for deep-sea oil and gas exploration. The matching deep-sea pipeline joints achieve zero leakage through advanced vacuum electron beam welding technology, with a seawater corrosion resistance rate of less than 0.001mm/year and a service life of over 30 years, greatly reducing the maintenance costs and risks of deep-sea oil and gas engineering.
Pressure resistant structural components
Titanium alloy sleeve rings play a crucial role in oil and gas wellhead blowout preventers. Compared with stainless steel, it has excellent resistance to H ₂ S stress corrosion, with corrosion resistance five times better than stainless steel. In complex deep-sea oil and gas extraction environments, it can effectively prevent equipment failure caused by stress corrosion and ensure the safe operation of oil and gas wellheads.
Chemical and Energy Equipment: Efficient and Durable Core Components
In the field of chemical and energy equipment, titanium rings have become a key factor in improving equipment performance and lifespan due to their excellent corrosion resistance and chemical stability.
Core equipment for chlor alkali industry
In the chlor alkali industry, the titanium ring sealing component of the electrolytic cell performs well in a 32% caustic soda solution, with a corrosion rate of less than 0.01mm/year. Combined with TA19 alloy anode, the current efficiency can be increased to 97%, greatly improving the efficiency of chlor alkali production. In the PTA oxidation reactor, the use of titanium lined rings effectively breaks through the material failure bottleneck in the acetic acid+bromide environment, achieving 10 years of maintenance free operation and reducing equipment replacement frequency and production costs.
New energy system
In the field of new energy, titanium rings also play an important role. As a support component for the cooling system bundle of a nuclear reactor, titanium rings can withstand the corrosion of pure water at a high temperature of 300 ℃, and have a lower irradiation rate than
Zirconium alloys, ensuring the safe and stable operation of the nuclear reactor. In hydrogen fuel cells, after plating platinum coating on the surface of the bipolar plate titanium sealing ring, the contact resistance can be reduced to 5m Ω· cm ², improving the energy conversion efficiency of the hydrogen fuel cell.
Aerospace field: experts in adapting to high and low temperatures
The aerospace industry has extremely strict requirements for material performance, and titanium rings have become a key material in this field due to their excellent high and low temperature performance.
Aircraft engine combustion chamber
In the combustion chamber of aircraft engines, TC4 titanium rings are used for high-temperature gas sealing. By laser cladding VSZ thermal barrier coating, its temperature resistance can be increased to 1100 ℃, effectively preventing high-temperature gas leakage and ensuring the normal operation of the engine.
Spacecraft fuel storage tank
TA7 titanium rings perform well in spacecraft fuel tanks, with excellent low-temperature toughness and the ability to perfectly adapt to liquid hydrogen/liquid oxygen media. Maintaining stable performance in extreme low-temperature environments provides reliable support for the launch and operation of spacecraft.
Flight control hydraulic system
The titanium alloy servo valve ring has undergone precision honing, with a surface roughness of up to Ra0.2 μ m, ensuring zero leakage in high-pressure oil circuits. Accurate oil circuit control is crucial for stable flight of aircraft in flight control hydraulic systems, and the high-precision performance of titanium alloy servo valve rings provides strong support for flight safety.
Automotive Manufacturing Upgrade: Representations of Lightweight and High Performance
With the development of the automotive industry, lightweight and high-performance have become important goals in automotive manufacturing, and the application of titanium rings in the automotive field precisely meets this demand.
Lightweight powertrain system
The titanium ring housing of the turbocharger replaces traditional cast iron parts, which can reduce weight by 40%, greatly reducing the weight of the car and improving fuel economy. At the same time, it can withstand exhaust gas corrosion temperatures up to 950 ℃, ensuring long-term stable use in high-temperature exhaust gas environments. The TC4 titanium alloy connecting ring of the transmission shaft has achieved zero failure after 100000 cycles of torsional fatigue, with a specific strength of 29, improving the reliability and service life of the transmission system.
Application of new energy vehicles
In hydrogen energy storage tanks, the titanium ring head is formed using ultra plastic forming technology, which can reduce the wall thickness to 3mm, but still maintain a pressure bearing capacity of 70MPa. This feature enables hydrogen energy storage tanks to achieve lighter design while ensuring safety, providing strong support for the development of new energy vehicles.
Special industrial scenarios: high-precision and customized solutions
In some special industrial scenarios, titanium rings also provide high-precision and customized solutions with their unique performance.
Semiconductor Manufacturing Equipment
High purity TA2 titanium rings are used for etching chamber sealing. The surface is treated with electrolytic polishing, and the roughness can reach Ra<0.4 μ m, which can effectively avoid wafer contamination and ensure high precision and quality in semiconductor manufacturing.
3D printing equipment
In 3D printing equipment, porous titanium rings prepared by powder bed melting forming process have a porosity controlled at 50-70%, which can be adapted to customized filtration systems. This customized porous titanium ring can meet the special requirements for filtration accuracy and efficiency in different industrial scenarios.
Titanium rings play an important role in various fields such as deep-sea oil and gas engineering, chemical and energy equipment, aerospace, automotive manufacturing, and special industrial scenarios due to their excellent compression resistance, corrosion resistance, high and low temperature performance. With the continuous development of industrial technology, the application prospects of titanium rings will be even broader, and it is expected to provide stronger material support for the upgrading and development of various industries.
